Success! The instructions for gluing the transducer in-hull worked perfectly. NorCross, you might add a sentence about cleaning up the petroleum jelly!
Thank you to whomever posted this. Your post was a big help in placing the transducer in my Yamaha:
http://support.norcrossmarine.com/entries/20693333-HawkEye-Surface-Mount-Depth-Finder-on-a-2003-Yamaha-FX140-Cruiser
**Customer Notes: "I contacted Yamaha and they suggested that the transducer should be fitted in the pump section of the craft as this was a single skin area and the engine bay is double skin/"

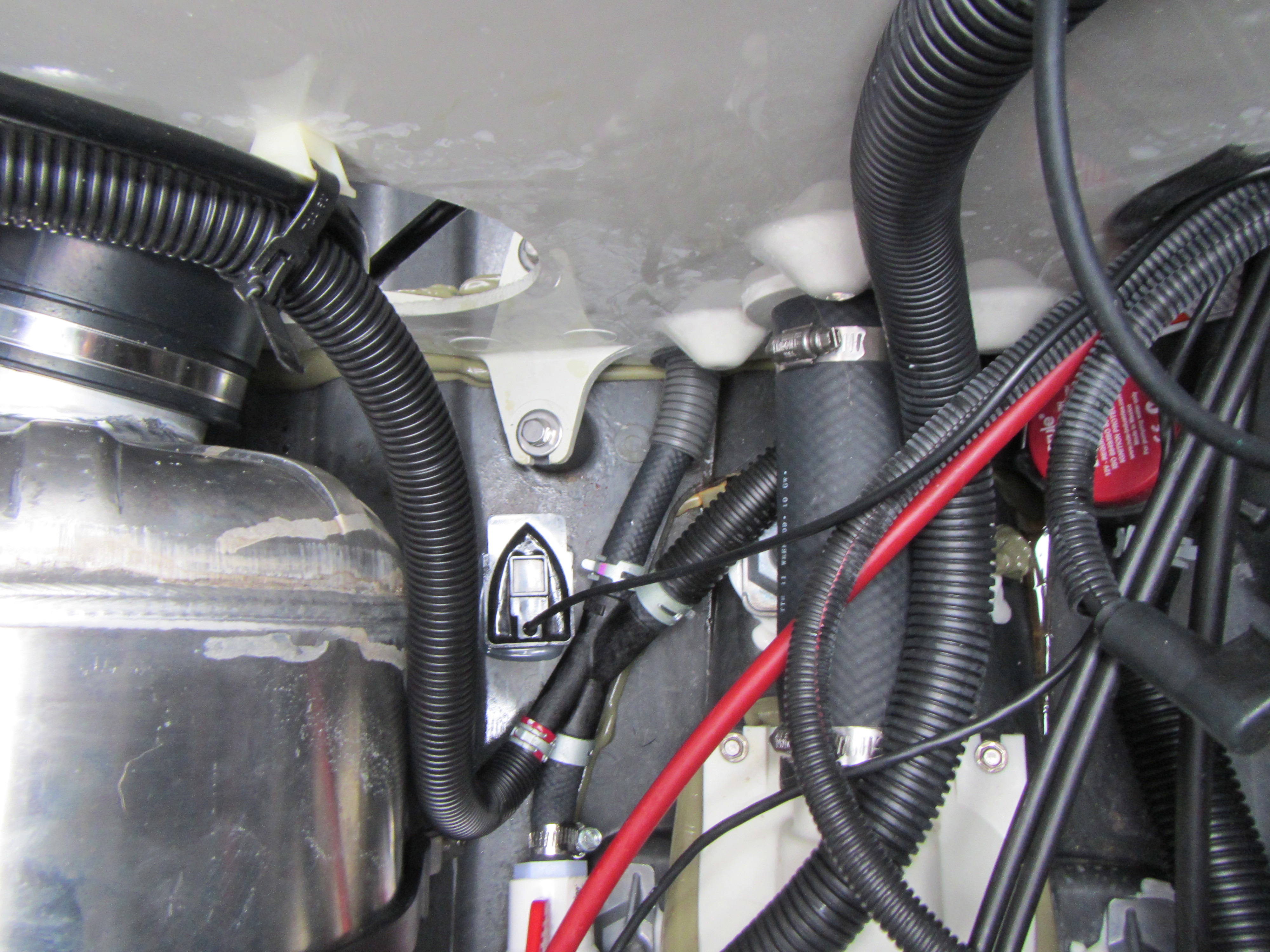

OK, I'll try it. I found an open, accessible spot and tested with petroleum jelly per the instructions. It worked so well, I seriously considered leaving the petroleum jelly and taping the transducer in place. No, I cleaned up the surface and used 2-part epoxy. I waited a few hours and tested again at the boat ramp. Again I received accurate depth readings. So far, I'm very happy with the results. A photo of my location is attached.
Comments
6 comments
Any chance you have a photo of where you installed the display on your SHO? I just ordered one and am undecided on where to drill a 2" hole!!
I'll take pics today and post them this afternoon. I didn't drill a mounting hole. I ordered the "Boat Mount Depth Finder Surface Mount Bracket " ($19.99). I did drill a small hole for the cable. I couldn't get it routed through the existing cable holes in the hull. Opening was too tight and my arm wouldn't reach either. I used 3M VHB adhesive tape for the mount. It's the same double-sided adhesive tape that's used on Go-Pro camera mounts. A hairdryer will loosen the VHB tape if you ever want to remove it.
This worked fine for me. It stayed in place on a 300 mile trip that included rough bay water near Charleston SC.
I stopped by the hangar on the way to work and took photos. I added a small on/off switch to the housing of the mount. I didn't want to cut into the waverunner's cables. I bought the switch at a local auto parts (Advanced Auto I think). Not pretty but it's out of the way and works fine... and no extra holes in my waverunner.
Good luck. If you're interested in the switch, I'll take it apart and post photos.
That's awesome!! So glad you posted pics!! I just ordered the mount as well. I'll post mine up when I'm finished. I' may just wire a connector to mate with my battery tender pigtail and just unplug it when I get home and plug in my tender.. Still undecided on a switch.. Yours looks great!!
Sorry, one more.
http://gopro.com/support/articles/how-to-purchase-adhesive-material-for-mounts. Go Pro says the adhesive tape is "2.5 mm Double Sided Tape and the 3M part number is 3M 4991 VHB".
I bought a roll from Amazon
http://www.amazon.com/s/ref=nb_sb_noss?url=search-alias%3Daps&field-keywords=4991%20vhb
Thanks for the great pictures and instructions Dale! We appreciate it!
