Connecting a HawkEye Boat Mount Depth Finder to Another Manufacturer's Transducer Follow

We do not offer adapter cables, plugs or connectors to connect a non-standard 200 khz transducer to a HawkEye® depth finder, however, you can solder the connection yourself.

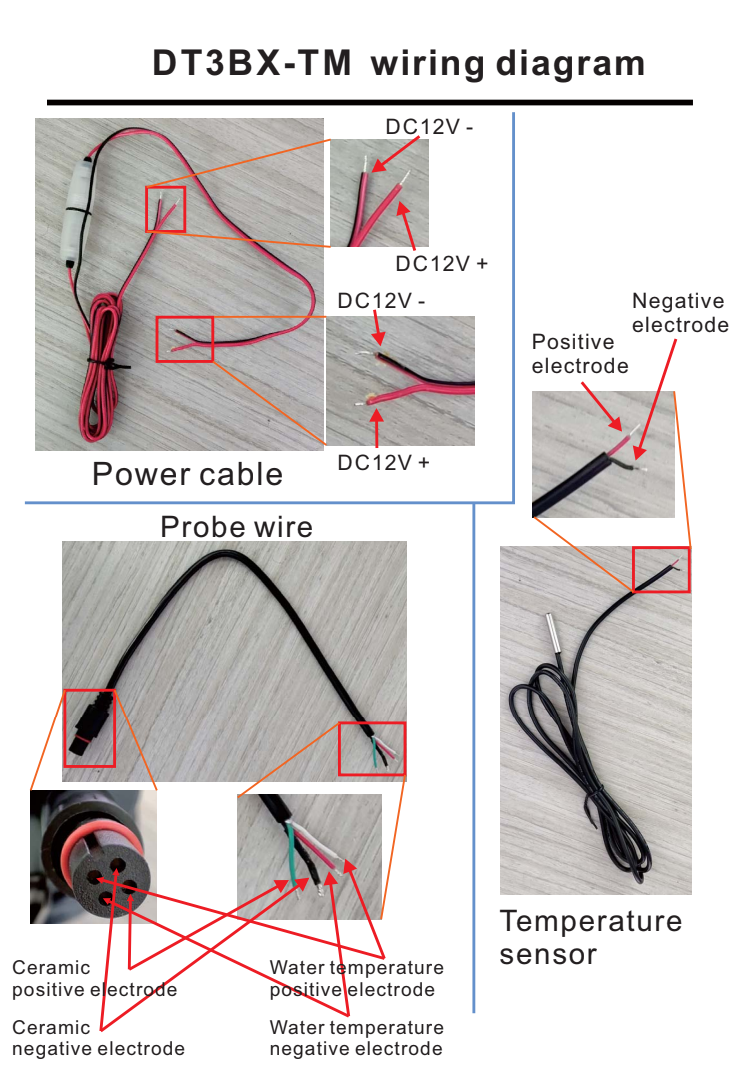

To aid in connecting a HawkEye display to another manufacturer's transducer, the color codes are as follows:

BOAT MOUNT DEPTH FINDERS WITHOUT WATER TEMPERATURE:
Blue = Depth +
Black = Depth -
Bare = Shield

BOAT MOUNT DEPTH FINDERS WITH WATER TEMPERATURE:
Green = Depth +
Black = Depth -
Red = Temp +
White = Temp -
Bare = Shield

If you would like to connect a HawkEye® boat mount depth finder to Airmar Transducer that does not have a HawkEye® Plug-&-Play connector, below are the wire connections.

BOAT MOUNT DEPTH FINDERS WITHOUT WATER TEMPERATURE:
Airmar Transducer Blue to HawkEye Depth Finder Blue
Airmar Black to HawkEye Depth Finder Black
Airmar Shield (bare) to HawkEye Shield (bare)

BOAT MOUNT DEPTH FINDERS WITH WATER TEMPERATURE:
Airmar Transducer Blue to HawkEye Depth Finder Green
Airmar Black to HawkEye Depth Finder Black
Airmar Shield (bare) to HawkEye Shield (bare)
Airmar Brown to HawkEye Red
Airmar White to HawkEye White
Airmar Shield (bare) to HawkEye Shield (bare)

Please Note: While most 200KHZ transducers are compatible with HawkEye supplied gauges HawkEye cannot be held liable for damages incurred when modifying factory wiring. Damage resulting from from these installations will not be covered under HawkEye's warranty policy.
